Configuring HA Kubernetes cluster on bare metal servers with kubeadm. 1/3
Hi all, in this article I wanna sort and share some experience about creating and using the internal Kubernetes cluster.
For the last few years this container orchestration tech made a great step forward and became a some kind of corporate standard for the thousands of companies. Some of them use it in production, some just test it inside their projects, but anyway there is a strong passion about it in IT community. So if you never used it before, it’s definitely time to start dive in to it.
0. Preamble
Kubernetes it’s a scalable orchestration technology, it can start from single node installation, up to the really big HA clusters, based on hundreds nodes inside. Most of the popular cloud providers, represent the different kind of Kubernetes implementations, so you can start using it very fast and easy in there. But there is a lot of situations and lot of companies that can’t use clouds for their needs, but they wanna get all benefits from the modern technologies of using containers also. And there bare metal Kubernetes installation comes on the scene.
1. Introduction.
In this example we’ll create a HA Kubernetes cluster with multi masters topology, with external Etcd cluster as base layer and a MetalLB load balancer inside. On all worker nodes we’ll deploy a GlusterFS like a easy internal distributed cluster storage. Also we’ll try to deploy some test projects in it, by using our private Docker registry.
Actually there is a few way in which we can create our HA Kubernetes cluster, hard and deep journey described in popular kubernetes-the-hard-waydocument, or more simple way using kubeadm utility.
Kubeadm it’s a tool that was created by Kubernetes community exactly for simplifying the Kubernetes installation and making this process more easy. Previously Kubeadm was recommended only for creating small single master test clusters, just for getting started purposes. But for the last year there was many improvements done on it and now we can use it for creating multi masters HA clusters also. According to Kubernetes community news, Kubeadm will be a recommended tool for Kubernetes installation in the future time.
Kubeadm documentation propose a two main way of cluster implementing, with stacked and external etcd topology. I’ll choose a second way with external etcd nodes, because of fault tolerance reasons for the HA cluster.

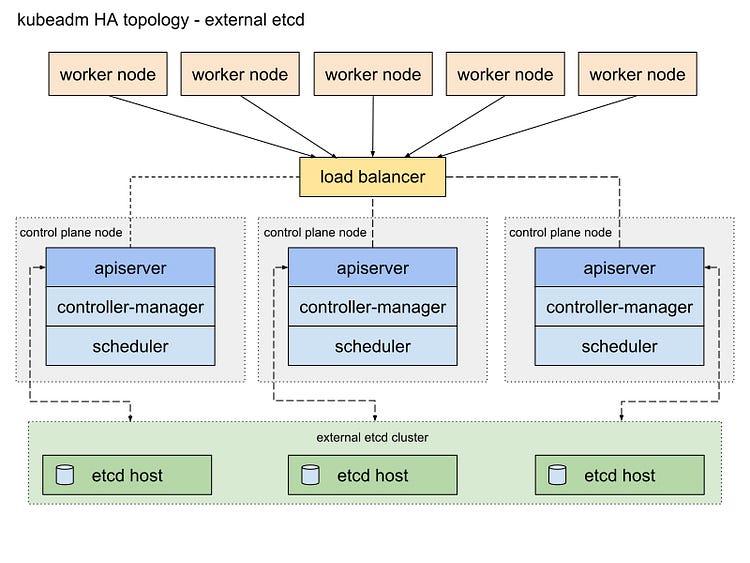

There is the schema from Kubeadm documentation describing this way:
I’ll change this schema a bit. First, I’ll use a pair of HAProxy as load balancers with Heartbeat that will share a virtual IP between them. Heartbeat & HAProxy use a small count of system resources, so I’ll place them on pair of Etcd nodes, to decrease a servers count for our cluster a bit.
For this Kubernetes cluster schema we’ll need eight nodes. A three servers for external etcd cluster(also LB services will use pair of them), two for the control plane nodes (master nodes) and three for the worker nodes. It can be bare metal or VM servers, it doesn’t matter. You can simply change this schema by add more masters and placing HAProxy with Heartbeat on separated nodes, if you have a lot of free servers. But in fact my variant be a quite enough for the first HA cluster implementation.
Optionally you can also add a small server with installed kubectl utility, for managing this cluster, or you can use your own Linux desktop for it.

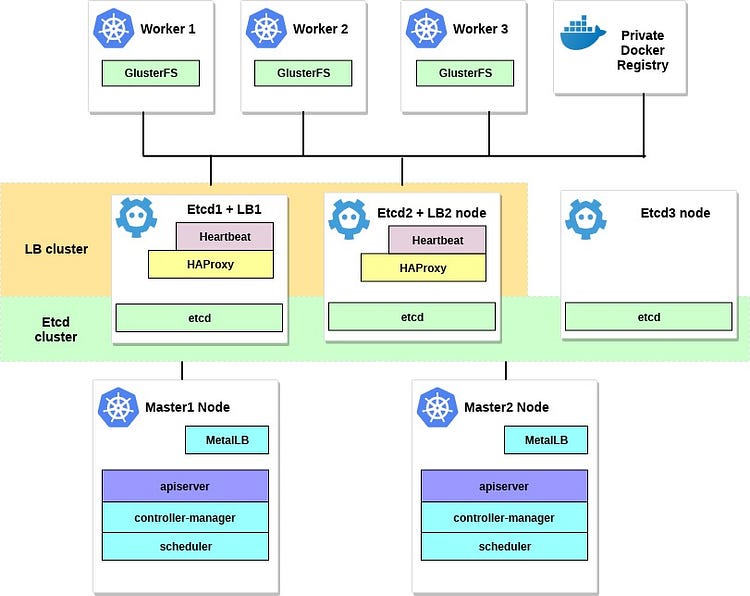

Schema for this example will look something like this:
2. Requirements.
We need two Kubernetes master nodes with minimum recommended system requirements of 2 CPUs and 2 GB of RAM according to the kubeadm documentation. For the worker nodes I’ll recommend to use more powerful servers, as we’ll run all our application services on them. And for the Etcd + LB we can also take servers with 2 CPUs and 2 GB of RAM minimum.
Also choose some public or private network for this cluster, it no really matter, what kind of IPs you’ll use, important that all servers must be reachable for each other and for you of course. Inside Kubernetes cluster we’ll configure an overlay network later.
Minimum requirements for this example:
2 servers with 2 CPUs & 2 GB of RAM for the masters
3 servers with 4 CPUs & 4 — 8 GB of RAM for the workers
3 servers with 2 CPUs & 2 GB of RAM for Etcd & HAProxy
192.168.0.0/24 subnet.
192.168.0.1 — HAProxy virtual IP, 192.168.0.2–4 Etcd & HAProxy nodes main IPs, 192.168.0.5–6 Kubernetes masters main IPs, 192.168.0.7–9 Kubernetes workers main IPs.
Debian 9 base installed on all servers.
Also mind that system requirements depends of how big and powerful cluster you need. Read a Kubernetes documentation for the addition information.
3. Configuring HAProxy & Heartbeat.
As we’ll have more the one Kubernetes master node we need to configure a HAProxy load balancer in front of them, to distribute the traffic. It’ll be a pair of HAProxy servers, with one virtual IP that they will share. Fault tolerance will be organised by Heartbeat. We’ll use a first two Etcd servers for deploying them.
Let’s install and configure HAProxy with Heartbeat on first and second etcd servers(192.168.0.2–3 in this example):
etcd1# aetcd2# aSave original config and create new one:
etcd1# mv /etc/haproxy/haproxy.cfg{,.back}
etcd1# vi /etc/haproxy/haproxy.cfgetcd2# mv /etc/haproxy/haproxy.cfg{,.back}
etcd2# vi /etc/haproxy/haproxy.cfg
Add this configuration parameters for both HAProxy:
global
user haproxy
group haproxydefaults
mode http
log global
retries 2
timeout connect 3000ms
timeout server 5000ms
timeout client 5000msfrontend kubernetes
bind 192.168.0.1:6443
option tcplog
mode tcp
default_backend kubernetes-master-nodesbackend kubernetes-master-nodes
mode tcp
balance roundrobin
option tcp-check
server k8s-master-0 192.168.0.5:6443 check fall 3 rise 2
server k8s-master-1 192.168.0.6:6443 check fall 3 rise 2
As you can see, both HAProxy services will use 192.168.0.1 shared IP address. This virtual IP will moved between servers, so we need to make some trick and enable net.ipv4.ip_nonlocal_bind sysctl option, to allow system services binding on the non local IP.
Add to the file /etc/sysctl.conf this option:
etcd1# vi /etc/sysctl.confnet.ipv4.ip_nonlocal_bind=1etcd2# vi /etc/sysctl.confnet.ipv4.ip_nonlocal_bind=1
Run on both:
sysctl -pAnd start HAProxy on both servers:
etcd1# systemctl start haproxy
etcd2# systemctl start haproxy
Check that HAProxy started and listened on virtual IP on both servers:
etcd1# netstat -ntlptcp 0 0 192.168.0.1:6443 0.0.0.0:* LISTEN 2833/haproxyetcd2# netstat -ntlptcp 0 0 192.168.0.1:6443 0.0.0.0:* LISTEN 2833/haproxy
OK, now we’ll install Heartbeat and configure this virtual IP.
etcd1# apt-get -y install heartbeat && systemctl enable heartbeatetcd2# apt-get -y install heartbeat && systemctl enable heartbeat
Now it’s time to create a few configuration files for it, they will be mostly the same for the first and second servers.
Create a /etc/ha.d/authkeys file first, in this file Heartbeat stored data for authenticating each other. File must be the same on both servers:
# echo -n securepass | md5sum
bb77d0d3b3f239fa5db73bdf27b8d29aetcd1# vi /etc/ha.d/authkeysauth 1
1 md5 bb77d0d3b3f239fa5db73bdf27b8d29aetcd2# vi /etc/ha.d/authkeysauth 1
1 md5 bb77d0d3b3f239fa5db73bdf27b8d29a
This file need to be owned by root only:
etcd1# chmod 600 /etc/ha.d/authkeys
etcd2# chmod 600 /etc/ha.d/authkeys
Next let’s create a main configuration file for Heartbeat on both servers, it’ll be a bit different for both of them.
Create /etc/ha.d/ha.cf:
etcd1
etcd1# vi /etc/ha.d/ha.cf# keepalive: how many seconds between heartbeats
#
keepalive 2
#
# deadtime: seconds-to-declare-host-dead
#
deadtime 10
#
# What UDP port to use for udp or ppp-udp communication?
#
udpport 694
bcast ens18
mcast ens18 225.0.0.1 694 1 0
ucast ens18 192.168.0.3
# What interfaces to heartbeat over?
udp ens18
#
# Facility to use for syslog()/logger (alternative to log/debugfile)
#
logfacility local0
#
# Tell what machines are in the cluster
# node nodename ... -- must match uname -n
node etcd1_hostname
node etcd2_hostname
etcd2
etcd2# vi /etc/ha.d/ha.cf# keepalive: how many seconds between heartbeats
#
keepalive 2
#
# deadtime: seconds-to-declare-host-dead
#
deadtime 10
#
# What UDP port to use for udp or ppp-udp communication?
#
udpport 694
bcast ens18
mcast ens18 225.0.0.1 694 1 0
ucast ens18 192.168.0.2
# What interfaces to heartbeat over?
udp ens18
#
# Facility to use for syslog()/logger (alternative to vlog/debugfile)
#
logfacility local0
#
# Tell what machines are in the cluster
# node nodename ... -- must match uname -n
node etcd1_hostname
node etcd2_hostname
The “node” parameters for this config you can get by running uname -n on both Etcd servers. Also use your network card name instead of ens18.
At last we need to create the /etc/ha.d/haresources file on this servers. File be the same for both of them. In this file we declare our shared IP address and which node be the master by default:
etcd1# vi /etc/ha.d/haresourcesetcd1_hostname 192.168.0.1etcd2# vi /etc/ha.d/haresourcesetcd1_hostname 192.168.0.1
After all done, let’s start our Heartbeat services on both servers, and check that on etcd1 node we got this declared virtual IP up:
etcd1# systemctl restart heartbeat
etcd2# systemctl restart heartbeatetcd1# ip aens18: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether xx:xx:xx:xx:xx:xx brd ff:ff:ff:ff:ff:ff
inet 192.168.0.2/24 brd 192.168.0.255 scope global ens18
valid_lft forever preferred_lft forever
inet 192.168.0.1/24 brd 192.168.0.255 scope global secondary
You can check that HAProxy working OK running nc to the 192.168.0.1 6443 address. You must got a timeout, as there is no Kubernetes API listening on backend yet. But it means that HAProxy and Heartbeat configured well.
# nc -v 192.168.0.1 6443
Connection to 93.158.95.90 6443 port [tcp/*] succeeded!
4. Preparing nodes for Kubernetes.
At next step let’s prepare all Kubernetes nodes, we need to install Docker with some addition packages, add Kubernetes repository and install kubelet, kubeadm, kubectl packages from it. This setup will be the same for the all Kubernetes nodes (masters, workers and etcd).
The main benefit of Kubeadm is that you not need a lot of addition software you only need to install kubeadm on all your hosts and then use it, you can even use it for the CA certificates generation.
Install Docker on all nodes:
Update the apt package indexInstall packages to allow apt to use a repository over HTTPSAdd Docker’s official GPG key# curl -fsSL https://download.docker.com/linux/debian/gpg | apt-key add -
Add docker apt repositoryInstall docker-ce.Check docker version
# docker -v
Docker version 18.09.0, build 4d60db4
After that, install Kubernetes packages on all nodes:
kubeadm: the command to bootstrap the cluster.kubelet: the component that runs on all of the machines in your cluster and does things like starting pods and containers.kubectl: the command line util to talk to your cluster.- You can install kubectl optionally, but I often install it on all nodes, to get availability to run some Kubernetes command for the debugging reasons.
Add the Google repository key
# curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key add -Add the Google repository
# cat <<EOF >/etc/apt/sources.list.d/kubernetes.listdeb https://apt.kubernetes.io/ kubernetes-xenial mainEOFUpdate and install packages
# apt-get update && apt-get install -y kubelet kubeadm kubectlHold back packages
# apt-mark hold kubelet kubeadm kubectlCheck kubeadm version
# kubeadm version kubeadm version: &version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.1", GitCommit:"eec55b9dsfdfgdfgfgdfgdfgdf365bdd920", GitTreeState:"clean", BuildDate:"2018-12-13T10:36:44Z", GoVersion:"go1.11.2", Compiler:"gc", Platform:"linux/amd64"}
After you finishing with installing kubeadm and rest packages, don’t forget to disable swap.
# swapoff -a# sed -i '/ swap / s/^/#/' /etc/fstabRepeat this installations process on rest of the nodes. Software packages will be the same for the all cluster nodes and only next configuration will determine each roles they will get later.
5. Configuring HA Etcd cluster
Alright, after all preparations was finished we now can start with configuring our Kubernetes cluster. First brick will be a HA Etcd cluster that also be setuped with kubeadm tool.
Before we begin make sure that all etcd nodes can talk to each other over ports 2379 and 2380, also you need to configure a ssh access between them for using scp.
We’ll start on the first etcd node, and then just copy all needed certificates and config files on rest servers.
On all etcd nodes we need to add a new systemd config file, for the kubeletunit, with higher precedence:
etcd-nodes# cat << EOF > /etc/systemd/system/kubelet.service.d/20-etcd-service-manager.conf[Service]ExecStart=ExecStart=/usr/bin/kubelet --address=127.0.0.1 --pod-manifest-path=/etc/kubernetes/manifests --allow-privileged=trueRestart=alwaysEOFetcd-nodes# systemctl daemon-reloadetcd-nodes# systemctl restart kubeletThen ssh to the first etcd node, we’ll use this node to generate all needed kubeadm configs for each etcd nodes and then will copy them.
# Export all our etcd nodes IP's as variables etcd1# export HOST0=192.168.0.2etcd1# export HOST1=192.168.0.3etcd1# export HOST2=192.168.0.4# Create temp directories to store files for all nodesetcd1# mkdir -p /tmp/${HOST0}/ /tmp/${HOST1}/ /tmp/${HOST2}/etcd1# ETCDHOSTS=(${HOST0} ${HOST1} ${HOST2})etcd1# NAMES=("infra0" "infra1" "infra2")etcd1# for i in "${!ETCDHOSTS[@]}"; doHOST=${ETCDHOSTS[$i]}NAME=${NAMES[$i]}cat << EOF > /tmp/${HOST}/kubeadmcfg.yamlapiVersion: "kubeadm.k8s.io/v1beta1"kind: ClusterConfigurationetcd: local: serverCertSANs: - "${HOST}" peerCertSANs: - "${HOST}" extraArgs: initial-cluster: ${NAMES[0]}=https://${ETCDHOSTS[0]}:2380,${NAMES[1]}=https://${ETCDHOSTS[1]}:2380,${NAMES[2]}=https://${ETCDHOSTS[2]}:2380 initial-cluster-state: new name: ${NAME} listen-peer-urls: https://${HOST}:2380 listen-client-urls: https://${HOST}:2379 advertise-client-urls: https://${HOST}:2379 initial-advertise-peer-urls: https://${HOST}:2380EOFdoneThen generate the main certificate authority using kubeadm
etcd1# kubeadm init phase certs etcd-caThis command will create two files ca.crt & ca.key in /etc/kubernetes/pki/etcd/ directory.
etcd1# Now let’s generate certificates for all our etcd nodes:
### Create certificates for the etcd3 node etcd1# kubeadm init phase certs etcd-server --config=/tmp/${HOST2}/kubeadmcfg.yamletcd1# kubeadm init phase certs etcd-peer --config=/tmp/${HOST2}/kubeadmcfg.yamletcd1# kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST2}/kubeadmcfg.yamletcd1# kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST2}/kubeadmcfg.yamletcd1# cp -R /etc/kubernetes/pki /tmp/${HOST2}/### cleanup non-reusable certificatesetcd1# find /etc/kubernetes/pki -not -name ca.crt -not -name ca.key -type f -delete### Create certificates for the etcd2 nodeetcd1# kubeadm init phase certs etcd-server --config=/tmp/${HOST1}/kubeadmcfg.yamletcd1# kubeadm init phase certs etcd-peer --config=/tmp/${HOST1}/kubeadmcfg.yamletcd1# kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST1}/kubeadmcfg.yamletcd1# kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST1}/kubeadmcfg.yamletcd1# cp -R /etc/kubernetes/pki /tmp/${HOST1}/### cleanup non-reusable certificates againetcd1# find /etc/kubernetes/pki -not -name ca.crt -not -name ca.key -type f -delete### Create certificates for the this local nodeetcd1# kubeadm init phase certs etcd-server --config=/tmp/${HOST0}/kubeadmcfg.yamletcd1 #kubeadm init phase certs etcd-peer --config=/tmp/${HOST0}/kubeadmcfg.yamletcd1# kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST0}/kubeadmcfg.yamletcd1# kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST0}/kubeadmcfg.yaml# No need to move the certs because they are for this node# clean up certs that should not be copied off this hostetcd1# find /tmp/${HOST2} -name ca.key -type f -deleteetcd1# find /tmp/${HOST1} -name ca.key -type f -deleteThen let’s copy certificates and kubeadm configs to the etcd2 and etcd3nodes.
First generate a ssh key pair on etcd1 and add public part to the etcd2 & 3 nodes. In this example all commands be done from the root user.
etcd1# scp -r /tmp/${HOST1}/* ${HOST1}:etcd1# scp -r /tmp/${HOST2}/* ${HOST2}:### login to the etcd2 or run this command remotely by ssh
etcd2# cd /rootetcd2# mv pki /etc/kubernetes/### login to the etcd3 or run this command remotely by ssh
etcd3# cd /rootetcd3# mv pki /etc/kubernetes/
Ensure that files exist on all nodes before starting the etcd cluster:
List of required files on etcd1 is:
/tmp/192.168.0.2└── kubeadmcfg.yaml---/etc/kubernetes/pki├── apiserver-etcd-client.crt├── apiserver-etcd-client.key└── etcd ├── ca.crt ├── ca.key ├── healthcheck-client.crt ├── healthcheck-client.key ├── peer.crt ├── peer.key ├── server.crt └── server.keyFor the etcd2 node it’s:
/root└── kubeadmcfg.yaml---/etc/kubernetes/pki├── apiserver-etcd-client.crt├── apiserver-etcd-client.key└── etcd ├── ca.crt ├── healthcheck-client.crt ├── healthcheck-client.key ├── peer.crt ├── peer.key ├── server.crt └── server.keyAnd last etcd3 node:
/root└── kubeadmcfg.yaml---/etc/kubernetes/pki├── apiserver-etcd-client.crt├── apiserver-etcd-client.key└── etcd ├── ca.crt ├── healthcheck-client.crt ├── healthcheck-client.key ├── peer.crt ├── peer.key ├── server.crt └── server.keyAfter all certificates and configs now in place we need to create the manifests. On each node run the kubeadm command to generate a static manifest for etcd cluster:
etcd1# kubeadm init phase etcd local --config=/tmp/192.168.0.2/kubeadmcfg.yamletcd2# kubeadm init phase etcd local --config=/root/kubeadmcfg.yamletcd3# kubeadm init phase etcd local --config=/root/kubeadmcfg.yamlAfter that etcd cluster must be configured and healthy, we can check it by running this command on etcd1 node:
etcd1# ### status output
member 37245675bd09ddf3 is healthy: got healthy result from https://192.168.0.3:2379
member 532d748291f0be51 is healthy: got healthy result from https://192.168.0.4:2379
member 59c53f494c20e8eb is healthy: got healthy result from https://192.168.0.2:2379
cluster is healthy
The etcd cluster is UP and we can move forward.
6. Configuring masters and workers nodes
It’s time to setup master nodes for our cluster, copy this files from the first etcdnode to the first master node:
etcd1# scp /etc/kubernetes/pki/etcd/ca.crt 192.168.0.5:etcd1# scp /etc/kubernetes/pki/apiserver-etcd-client.crt 192.168.0.5:etcd1# scp /etc/kubernetes/pki/apiserver-etcd-client.key 192.168.0.5:Then ssh to the master1 node and create the kubeadm-config.yaml file with the following contents:
master1# cd /root && vi kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta1kind: ClusterConfigurationkubernetesVersion: stableapiServer: certSANs: - "192.168.0.1"controlPlaneEndpoint: "192.168.0.1:6443"etcd: external: endpoints: - https://192.168.0.2:2379 - https://192.168.0.3:2379 - https://192.168.0.4:2379 caFile: /etc/kubernetes/pki/etcd/ca.crt certFile: /etc/kubernetes/pki/apiserver-etcd-client.crt keyFile: /etc/kubernetes/pki/apiserver-etcd-client.keyMove the previously copied certificates and key to the properly directory on master1 as we listed in config.
master1# mkdir -p /etc/kubernetes/pki/etcd/ master1# cp /root/ca.crt /etc/kubernetes/pki/etcd/master1# cp /root/apiserver-etcd-client.crt /etc/kubernetes/pki/master1# cp /root/apiserver-etcd-client.key /etc/kubernetes/pki/To creating first master node run:
master1# kubeadm init --config kubeadm-config.yaml
If all previous steps was done right you will see this:
You can now join any number of machines by running the following on each node
as root:kubeadm join 192.168.0.1:6443 --token aasuvd.kw8m18m5fy2ot387 --discovery-token-ca-cert-hash sha256:dcbaeed8d1478291add0294553b6b90b453780e546d06162c71d515b494177a6
Copy this kubeadm init output to some text file, we’ll use this token in future when will join the a second master and worker nodes to our cluster.
As I said previously our Kubernetes cluster will use some overlay network inside, for the Pods and other services, so at this point we need to install some CNI plugin. I recommend a Weave CNI plugin, after some experience I found it more useful and less problem, but you can choose another one like Calico or other.
Installing the Weave net plugin on first master node:
master1# kubectl --kubeconfig /etc/kubernetes/admin.conf apply -f "https://cloud.weave.works/k8s/net?k8s-version=$(kubectl version | base64 | tr -d '\n')"The connection to the server localhost:8080 was refused - did you specify the right host or port?
serviceaccount/weave-net created
clusterrole.rbac.authorization.k8s.io/weave-net created
clusterrolebinding.rbac.authorization.k8s.io/weave-net created
role.rbac.authorization.k8s.io/weave-net created
rolebinding.rbac.authorization.k8s.io/weave-net created
daemonset.extensions/weave-net created
Wait a little and type next command for checking that pods of the components get started:
master1# kubectl --kubeconfig /etc/kubernetes/admin.conf get pod -n kube-system -wNAME READY STATUS RESTARTS AGE
coredns-86c58d9df4-d7qfw 1/1 Running 0 6m25s
coredns-86c58d9df4-xj98p 1/1 Running 0 6m25s
kube-apiserver-master1 1/1 Running 0 5m22s
kube-controller-manager-master1 1/1 Running 0 5m41s
kube-proxy-8ncqw 1/1 Running 0 6m25s
kube-scheduler-master1 1/1 Running 0 5m25s
weave-net-lvwrp 2/2 Running 0 78s
- It’s recommended to join new control plane nodes only after the first node has finished initialising.
To check the state of our cluster now run this:
master1# kubectl --kubeconfig /etc/kubernetes/admin.conf get nodes
NAME STATUS ROLES AGE VERSION
master1 Ready master 11m v1.13.1
Cool, the first master node is UP and ready, now we can add second master node and add our workers nodes, to complete the Kubernetes cluster creation.
For adding a second master node make some ssh key on master1 and add public part to the master2 node. Make test login and then copy some files from the first master node to the second:
master1# scp /etc/kubernetes/pki/ca.crt 192.168.0.6:
master1# scp /etc/kubernetes/pki/ca.key 192.168.0.6:
master1# scp /etc/kubernetes/pki/sa.key 192.168.0.6:
master1# scp /etc/kubernetes/pki/sa.pub 192.168.0.6:
master1# scp /etc/kubernetes/pki/front-proxy-ca.crt @192.168.0.6:
master1# scp /etc/kubernetes/pki/front-proxy-ca.key @192.168.0.6:
master1# scp /etc/kubernetes/pki/apiserver-etcd-client.crt @192.168.0.6:
master1# scp /etc/kubernetes/pki/apiserver-etcd-client.key @192.168.0.6:
master1# scp /etc/kubernetes/pki/etcd/ca.crt 192.168.0.6:etcd-ca.crt
master1# scp /etc/kubernetes/admin.conf 192.168.0.6:### Check that files was copied well
master2# ls /rootadmin.conf ca.crt ca.key etcd-ca.crt front-proxy-ca.crt front-proxy-ca.key sa.key sa.pub
On second master node move the previously copied certificates and keys to the properly directories:
master2#
mkdir -p /etc/kubernetes/pki/etcdmv /root/ca.crt /etc/kubernetes/pki/mv /root/ca.key /etc/kubernetes/pki/mv /root/sa.pub /etc/kubernetes/pki/mv /root/sa.key /etc/kubernetes/pki/mv /root/Now let’s join the second master node to the cluster, for this we’ll need a join command output, that was previously given to us by kubeadm init on the first node.
Run on master2:
master2# - We need to add the
--experimental-control-planeflag. This flag automates joining this master nodes to the cluster. Without this flag you’ll just add a regular worker node.
Wait a bit before node complete joining the cluster and check the new cluster state:
master1# NAME STATUS ROLES AGE VERSION
master1 Ready master 32m v1.13.1
master2 Ready master 46s v1.13.1
Also check that all pods from all master nodes started OK:
master1# Well done, we almost finished with our Kubernetes cluster configuration, the last thing we need to do, it’s add the three worker nodes that we prepared previously.
Login to worker nodes and run the kubeadm join command without --experimental-control-plane flag.
worker1-3# Now let’s check our cluster state again:
master1# NAME STATUS ROLES AGE VERSION
master1 Ready master 1h30m v1.13.1
master2 Ready master 1h59m v1.13.1
worker1 Ready <none> 1h8m v1.13.1
worker2 Ready <none> 1h8m v1.13.1
worker3 Ready <none> 1h7m v1.13.1
As you can see we now has a fully configured HA Kubernetes cluster with two master nodes and three worker nodes. This cluster based on a HA etcd cluster with fault tolerance load balancer in front of our masters. Sounds good as for me.
7. Configuring remote cluster control
One more things that we left to do in this first part of article, configure a remote kubectl utility, that we’ll use for controlling our cluster. Previously we run all commands from the master1 node but this is good only for the first time, when we configuring cluster. Then configuring some external control node will be a good idea. You can use your laptop or other server for it.
Login to this server and run:
Add the Google repository key
control# curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key add -Add the Google repository
control# cat <<EOF >/etc/apt/sources.list.d/kubernetes.listdeb https://apt.kubernetes.io/ kubernetes-xenial mainEOFUpdate and install kubectl
control# apt-get update && apt-get install -y kubectlIn your user home dir create
control# mkdir ~/.kubeTake the Kubernetes admin.conf from the master1 node
control# scp 192.168.0.5:/etc/kubernetes/admin.conf ~/.kube/configCheck that we can send commands to our cluster
control# kubectl get nodesNAME STATUS ROLES AGE VERSION
master1 Ready master 6h58m v1.13.1
master2 Ready master 6h27m v1.13.1
worker1 Ready <none> 5h36m v1.13.1
worker2 Ready <none> 5h36m v1.13.1
worker3 Ready <none> 5h36m v1.13.1
Good, now let’s run some test pod in our cluster and check how it work.
control# kubectl create deployment nginx --image=nginx
deployment.apps/nginx createdcontrol# kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-5c7588df-6pvgr 1/1 Running 0 52s
Congrats, you just run your first Kubernetes deployment. And it mean your new HA Kubernetes cluster ready. Actually the Kubernetes cluster configuration process using kubeadm a pretty easy and fast.
In the next part of article we’ll add the internal storage by configuring a GlusterFS on all worker nodes, and will configure a internal load balancer for our Kubernetes cluster and also run some stress tests by shutdown some nodes and check how stable cluster can be.
Afterwords
Well, implementing this example you can meet some problems, don’t worry, for cancelling any changes and returning your nodes to the base state you can just run kubeadm reset, it’ll totally remove all changes that kubeadm was done before and you can start your configuration from scratch again. Also mind to check a docker containers state on your cluster nodes, to be sure that all of them starts and working without error. For getting more info about bad containers use docker logs containerid.
That’s all for now, good luck.
Reposted from
